Products

Kinesys are a versatile family of products for automating live experience environments. Products include variable speed chain hoists, winches, drives, load cells, and control systems. Engineered for precision, safety, and seamless integration, these products deliver reliable performance across live productions worldwide.

Explore our product range to find the perfect solution for your needs.

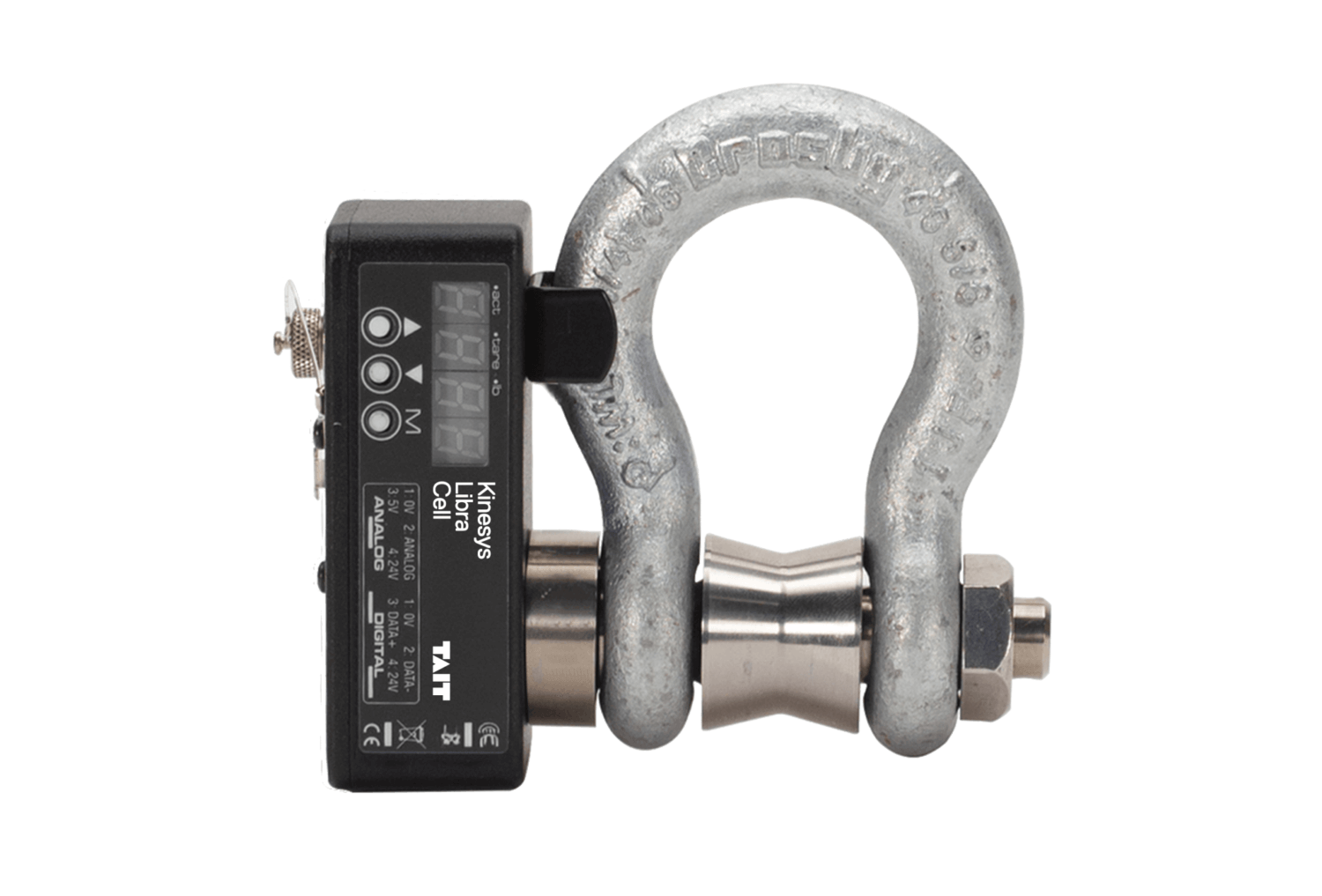

Kinesys Libra Cell

Kinesys Libra Cell is a load measuring shackle which, when combined with the other elements of the Kinesys Libra system, produces accurate, real time load information. Kinesys Libra Cell is designed for indoor use and is not waterproof. The load cell itself features the Kinesys Libra shackle pin, which is designed to work exclusively with the world-wide recognised Crosby safety bow shackle....

Find out more

Kinesys Libra Split

Kinesys Libra Split permits flexible connection of Kinesys Libra Cell devices to a single data connector on Kinesys Libra Pro, Kinesys Libra Basic and Kinesys DigiHoist. The total number of cells connected to Kinesys Libra Split is restricted by the limitations of the master port or master device. Kinesys Libra Split is housed in a robust extruded aluminium case and receives low-voltage DC power...

Find out more

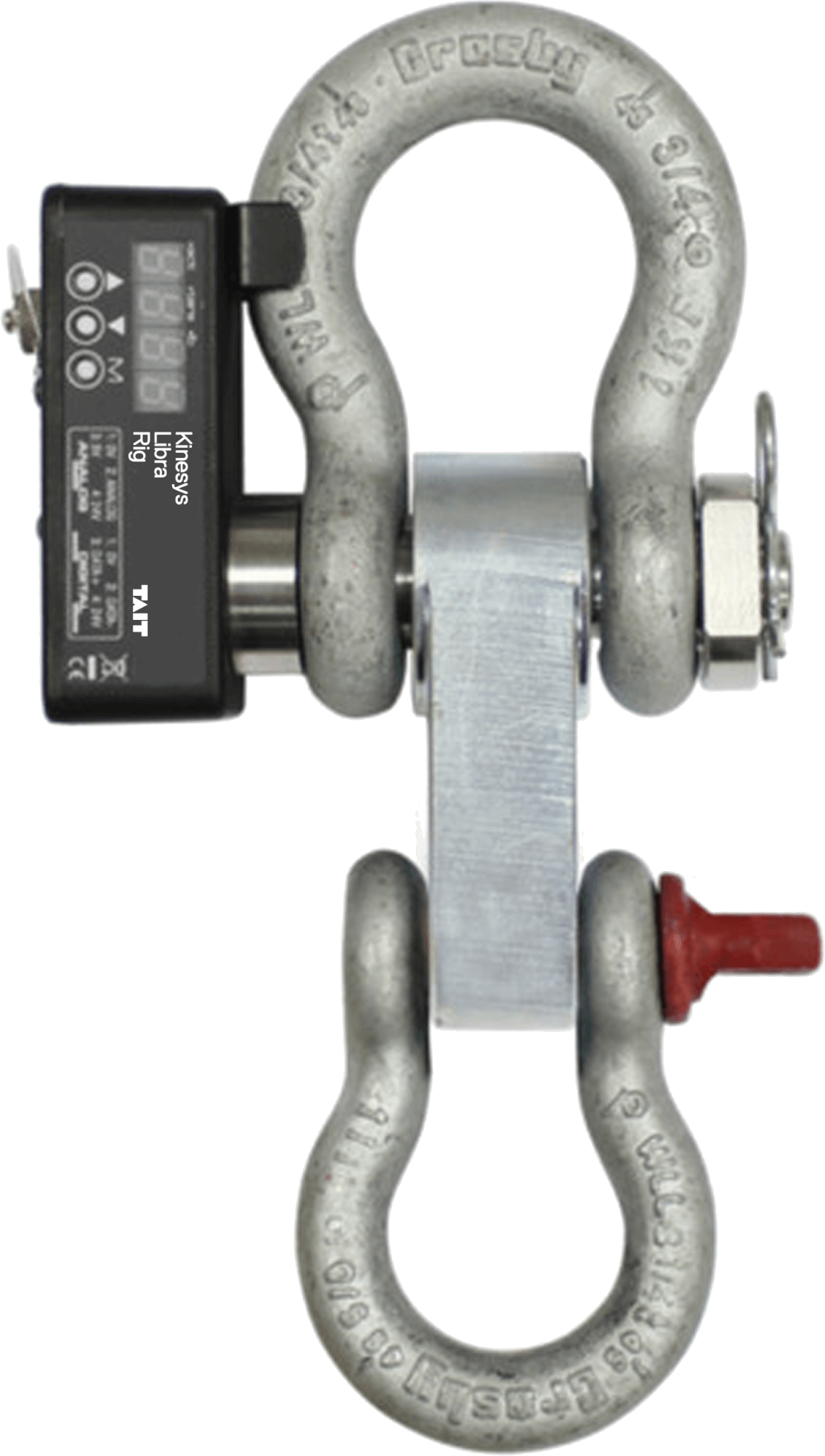

Kinesys Libra Rig

Kinesys Libra Rig is a lifting accessory, designed and manufactured by Kinesys to connect a 4.75TE Kinesys Libra Cell shackle to a 3.25 standard bow shackle. Using Kinesys Libra Rig the Libra Cell's do not have to be disassembled during load in/load out. Kinesys Libra Rig can travel on the Kinesys Libra Cell and loses less “hook height” than an O Ring, saving time and increasing the...

Find out more

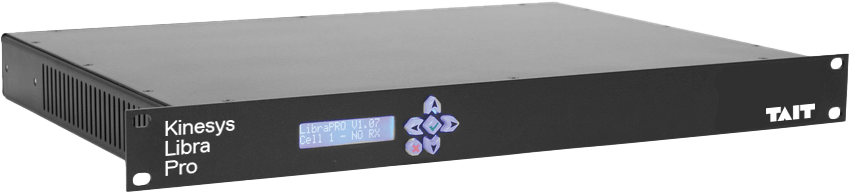

Kinesys Libra Pro

The Kinesys Libra Pro features four XLR4 outputs allowing up to 100 loadcells to be monitored. It also features four programmable relay outputs and Ethernet connectivity. Integration is at the heart of the Kinesys Libra Pro, multiple Kinesys Libra Cell outputs and USB and Ethernet connectivity make this the core of a Kinesys Libra system. Kinesys Libra Pro relay outputs can be utilised to...

Find out more

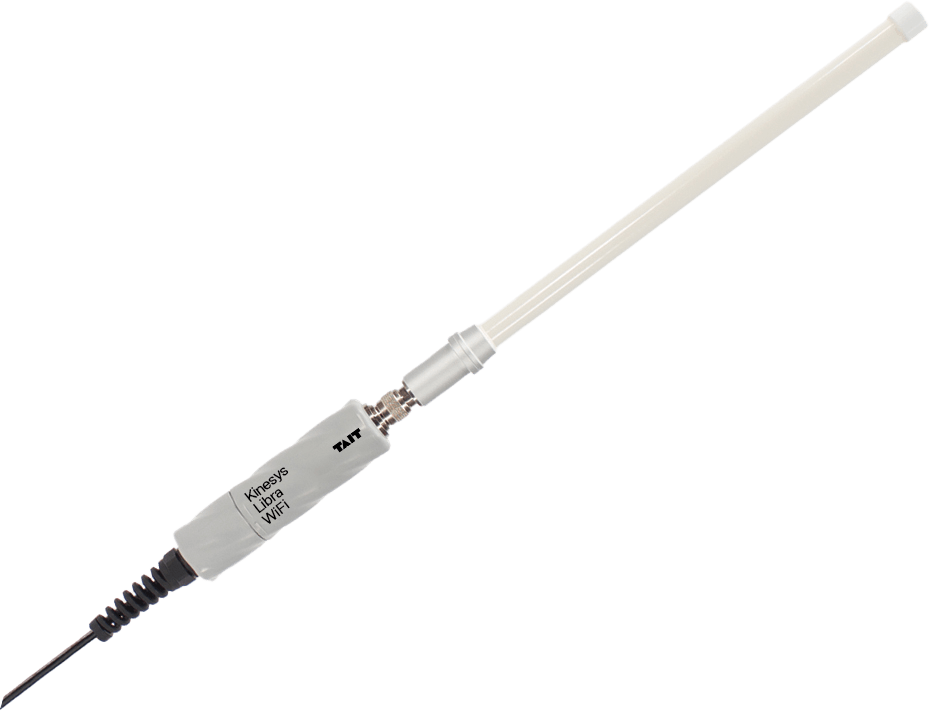

Kinesys Libra WiFi

A key advantage of Kinesys Libra WiFi is its unique design, perfect for using at any live entertainment event. The aerial can be easily mounted onto any truss, maximising the chances of generating the best signal without any limitations. A built in Firewall permits only Kinesys data into the Kinesys Libra network which allows load data to be communicated in a fast, secure and safe way. Libra...

Find out more

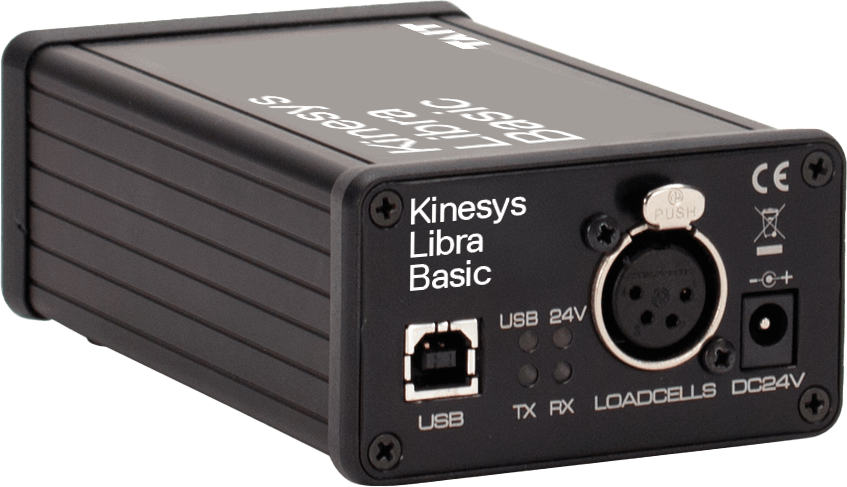

Kinesys Libra Basic

When used in conjunction with the Kinesys Libra View software, data from the load cells can be viewed, grouped and logged easily. A USB socket makes connection very simple. The Kinesys Libra Basic is powered by an external universal power supply that allows the system to be used anywhere in the world. The Kinesys Libra Basic can power up to 25 Libra Load Cells from the single XLR4 connection on...

Find out more

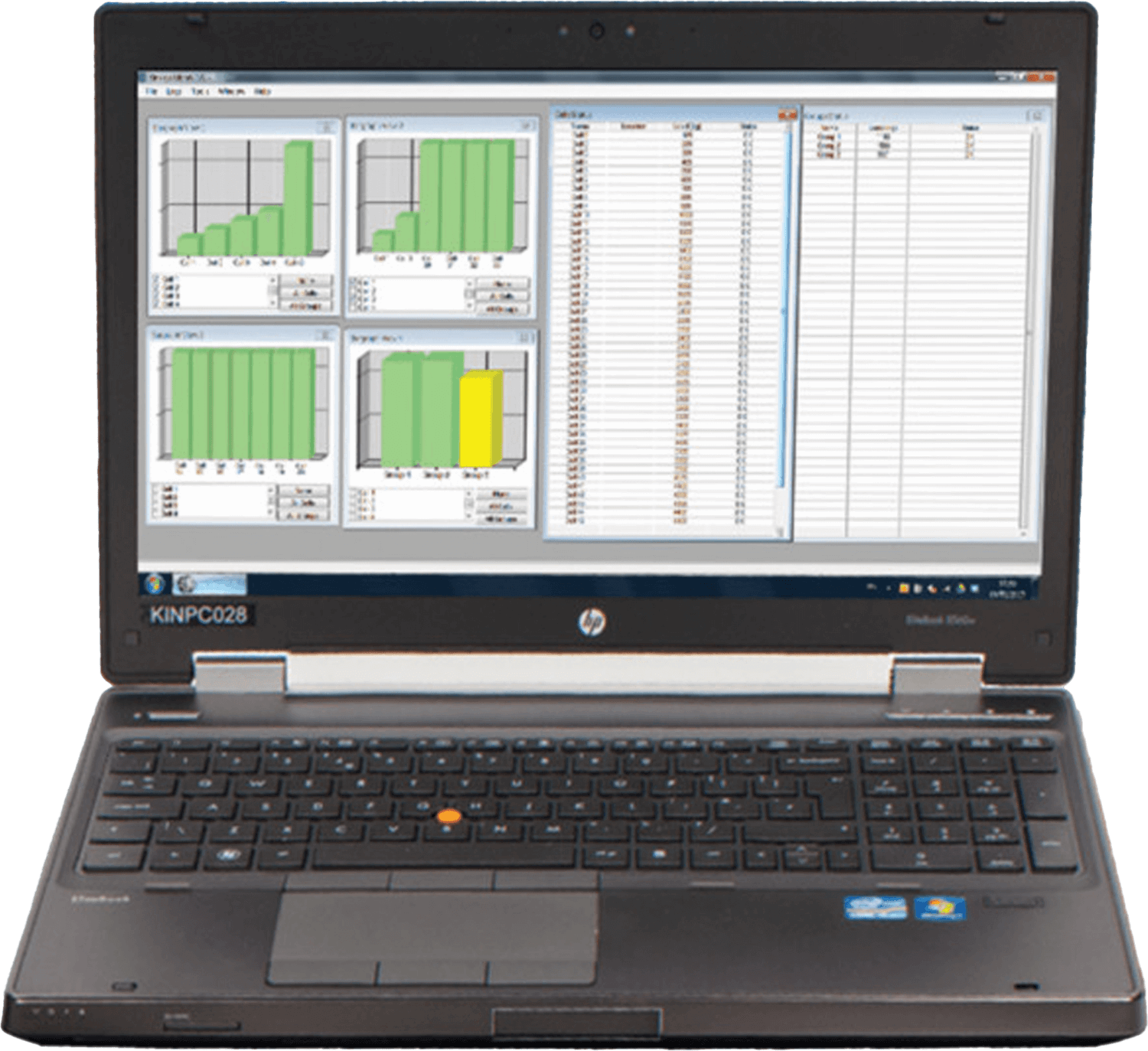

Kinesys Libra View

It works in conjunction with Kinesys Libra Cell's, Kinesys Libra Basic and Kinesys Libra Pro controllers. The software enables users to get a live readout of weights placed on Kinesys Libra Cell's, as well as offering logging and archiving facilities. These are available in kg or lbs. The Kinesys Libra View software allows all activity to be logged and exported to a Comma Separated Value (.csv)...

Find out more

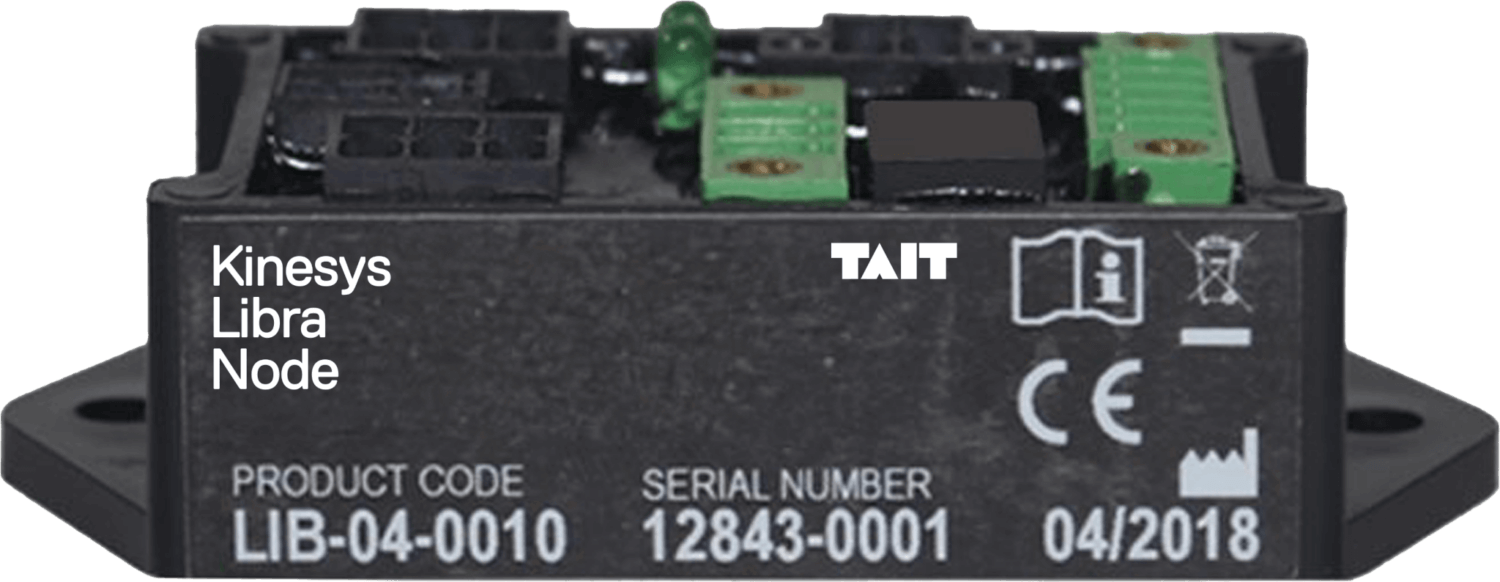

Kinesys Libra Node

The Kinesys Libra Node allows the connection of 3rd party load sensors to the Kinesys Libra Range. It has been designed to be used by OEMs to incorporate into their machines and structures. The Kinesys Libra Node can read 0-10V, 4-20mA and strain-gauge inputs and convert them into the digital data stream used by the Libra network. The Kinesys Libra Node also has outputs for driving LEDs to...

Find out more

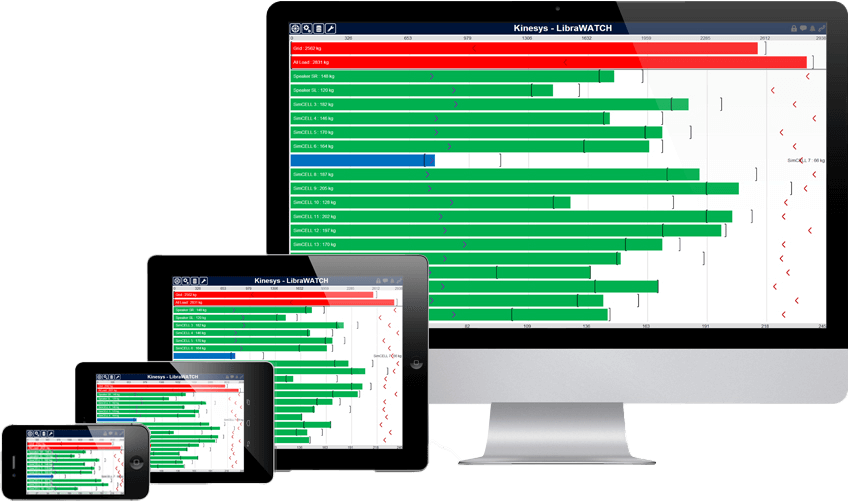

Kinesys Libra Watch

Kinesys Libra Watch is a portable, user-friendly and powerful load monitoring software application that is an integral part of the Kinesys Libra range; Kinesys Libra Cell, Kinesys Libra Pro and Kinesys Libra WiFi. It is a multi-platform software program which can be used on any computer, tablet or smartphone device. It gives the option of viewing load data in tabular, graphical or plan form...

Find out more
