Elevation is Kinesys’ truss mounting variable speed chain hoist control solution. Designed to be located locally to the chain hoist that it controls, this innovative approach removes the need for large quantities of cabling and permits a number of motors and controllers to be supplied by single power and data cables.
Elevation has been a popular range since its launch in 2003. Since that time new industry standards have evolved around the world, and therefore in some territories, and for some applications, our Kinesys Apex range may be better suited to your needs.
Designed to be located locally to the chain hoist that it controls, this innovative approach removes the need for large quantities of cabling and permits a number of motors and controllers to be supplied by single power and data cables.
The Kinesys Elevation Drive v2 removes the need for large quantities of cabling and permits a number of motors and controllers to be supplied by single power and data cables. The Kinesys Elevation Drive v2 together with customised versions of the most popular models of chain hoist, such as Lodestar, Liftket and GIS, represents the most flexible and reliable variable speed ‘open system’...
Find out more
Available in 250kg, 500kg and 1000kg models, the Kinesys Elevation Hoist updates the original Elevation1+ controlled Liftket Chain hoist with an improved Stageket body. Designed with the latest developments in manufacturing in mind, the hoist shares many mechanical parts with our top of the range Kinesys Apex Hoist500kg model, including a new latching chain hook, black chain and 24m height of...
Find out more
The Kinesys Elevation DST system features a stacking truss and a modular trolley system, including motorized, slave, and rotation trolleys. It is designed to be easily assembled prior to rigging activities. The modules are compatible with the Kinesys Elevation system via adapters and couplings, allowing variable speeds to be used. This Kinesys Elevation Trolley DST module provides horizontal...
Find out more
The Kinesys Elevation DST system consists of a stacking truss and a modular trolley track system with motorized, lead/follow and rotation modules. This versatile system can be easily assembled prior to rigging activities. The modules connect to the Kinesys Elevation system, via adapters and couplings, allowing variable speeds to be used. This Kinesys Elevation Rotator DST module provides 360°...
Find out more
Console Hardware The Kinesys Vector Console is an all-in-one control solution with a built-in dedicated PC running our industry established Vector Software. Vector users can run, edit and control cues via the keypad built in to the console, which mirrors the familiar layout of the keypad bundled with our initial Kinesys Vector software release. However, the user interface has also been...
Find out more
Designed to mimic industry-standard handheld controllers the Kinesys Rigger offers an instantly recognisable method of operation with minimal training required. A Kinesys Rigger can operate variable speed chain hoists and can be used in place of, or in conjunction with, a computer control system such as Kinesys Vector Using the flexible menu system on the Kinesys Elevation 1+ along with the...
Find out more
Kinesys Vector software allows cues to be built and run with a variety of linking options. The number of cues that can be built and channels that can be controlled are limited only by your imagination. Creating and Editing Cues Kinesys Vector has a wealth of cue creation and editing features designed to allow rapid entry and programming of cues. Advanced linking features allow complex cue...
Find out more
Kinesys converted Lodestar® combines the lifting mechanism design of a CM chain hoist, with the Kinesys Elevation1+ control for variable speed chain hoist. All Kinesys converted Lodestar® are fitted with double brakes, limit switches, encoder and – in conjunction with Kinesys LibraCELL – they can reach conformity with many of the world’s most restrictive safety standards. Kinesys...
Find out more
Kinesys converted VTE Beam trolleys combines the bearing mechanism design of a VTE trolley, with the Kinesys Elevation1+ variable speed control. Available in a range of speeds from 0 to 11m/min to 0 to 18m/min and also many capacities from 1000kg to 5000kg. All Kinesys converted VTE beam trolleys are fitted with tooth belt driven encoder for precise positioning functionality; travel motor...
Find out more

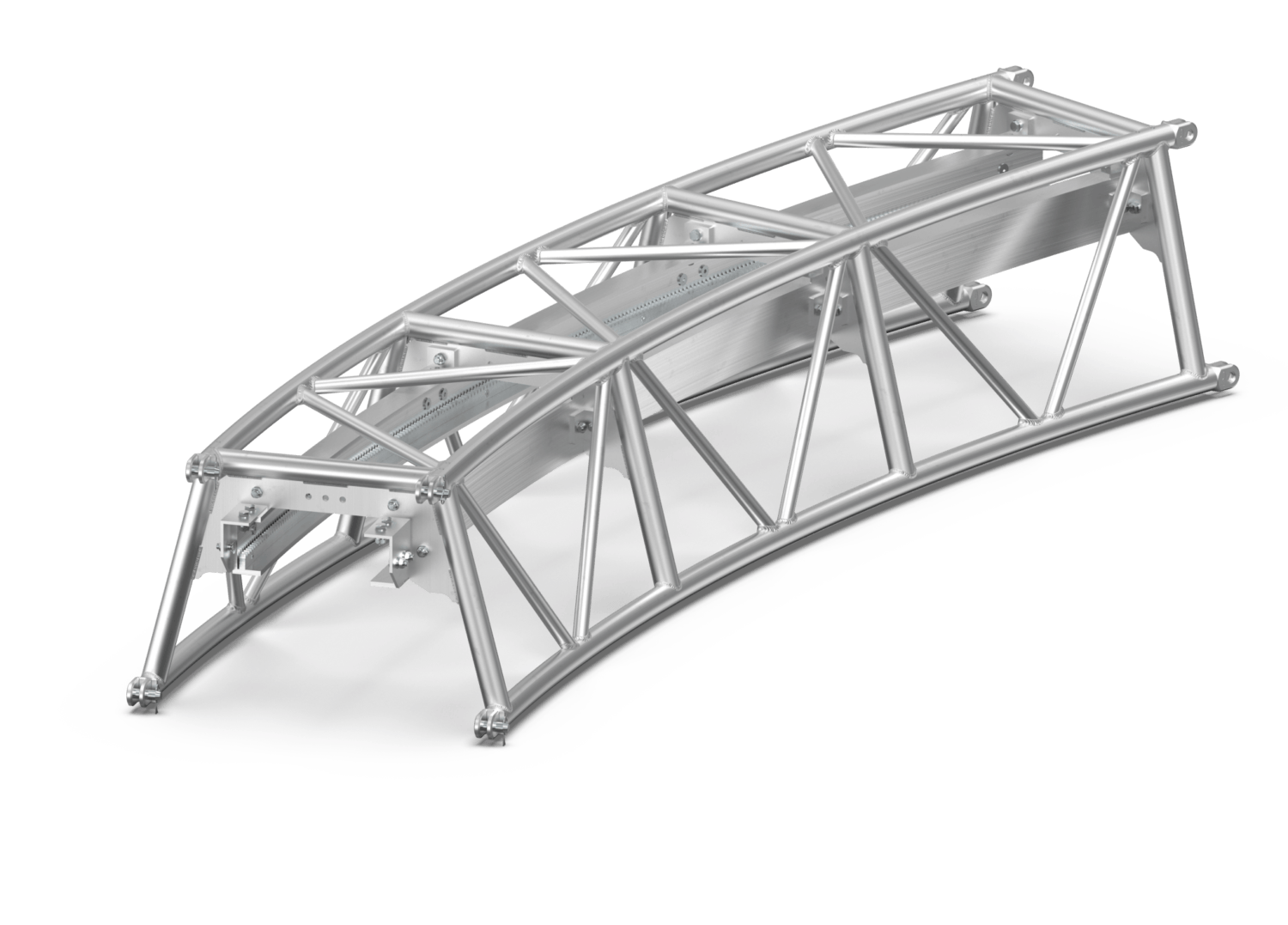

The Kinesys Elevation DST system comprises a stacking truss and a modular trolley system with motorized, slave, and rotation trolleys. This flexible system can be easily assembled before rigging activities. The modules are compatible with the Kinesys Elevation system, connected via adapters and couplings, allowing variable speeds to be used. The Kinesys Elevation DST Truss is a custom-built...
Find out more
Kinesys Mentor products provide the key interface between Kinesys’ different product ranges, allowing the emergency stop systems built into Kinesys Elevation, and Kinesys DigiHoist Ranges to work together simply and easily.
Find out more
The series 4 range of Kinesys Mentor controllers adds further features to the Kinesys Mentor safety controller family. It has SIL3 safety over Ethernet at its core and can communicate with and safely control up to 60 devices at any one time. Kinesys Mentor series 4 uses the emergency stops and enable switches (dead man’s handles) common across the Kinesys Mentor range. It also includes...
Find out more
The Kinesys Array 485 is a 1 in 8 out RS485 distribution unit for use with Elevation v2. The rear panel features 1 in 8 out XLR7 data connections for outputting RS485 data to Kinesys Elevation v2 units. The front panel offers link, data and emergency stop status indicators as well as the facility to plug a Kinesys Rigger remote in for local hoist control.
Find out more
The Kinesys Array IP8 is a rugged 8 port 10/100 Ethernet switch designed to work with Kinesys products. Ethercon connectors on the rear of the unit provide increased protection for 8 x RJ45 connections. Standard RJ-45 connectors can also be plugged into these outputs. LEDs on the front panel of the unit indicate if power is present, provide a channel by channel breakdown of activity and whether...
Find out more
The Kinesys Array Mini PD-ES provides 32A of emergency stop switched power through two 32A three-phase Ceeform outlets. A single-phase auxiliary outlet is provided for technical use. The three-phase outlets are protected with an adjustable RCD. Along with power and status indicators, the unit includes Kinesys Transform 485 functionality providing an interface between Kinesys Vector and...
Find out more
This 6U 19″ rack Kinesys Array PD-ES module provides 125A of emergency stop switched power through four 32A three-phase Ceeform outlets. All three-phase outlets are protected with an adjustable RCD. A single-phase auxiliary outlet is provided along with dual XLR7 data outputs for connection to Kinesys Elevation1+ controllers. The unit includes Kinesys Transform 485 functionality providing...
Find out more
Designed to integrate seamlessly into a motion control system the Kinesys Transform units allow devices on different networks to communicate. Kinesys Transform 485 translates between the native Ethernet protocol, outputted by Vector and K2 controllers and the RS485 bus used by the Elevation range via an XLR7. The Kinesys Transform 485 unit also features an emergency stop button built in, allowing...
